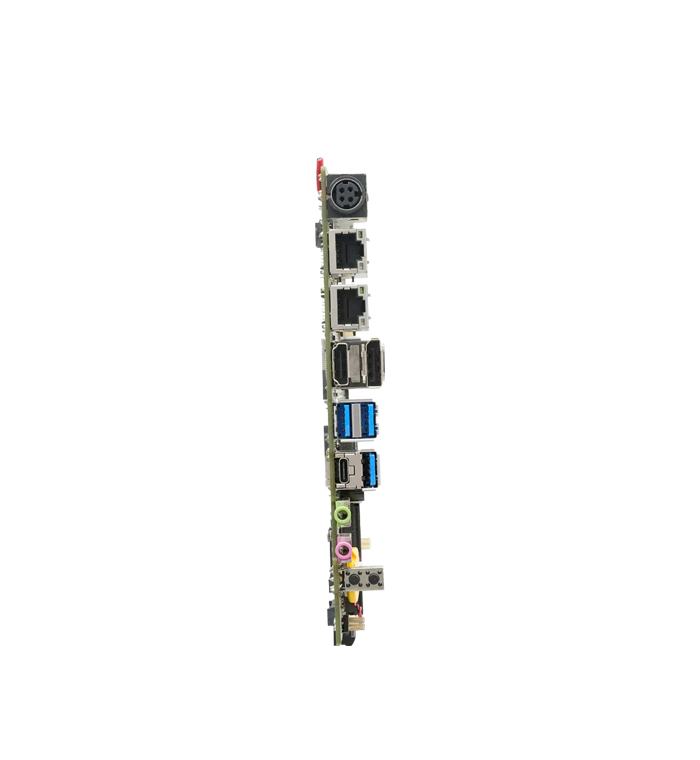

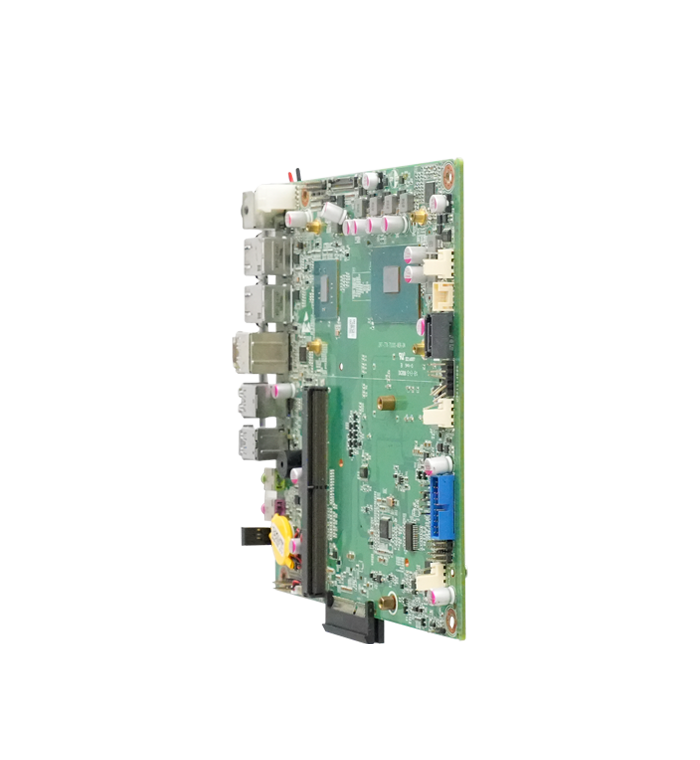

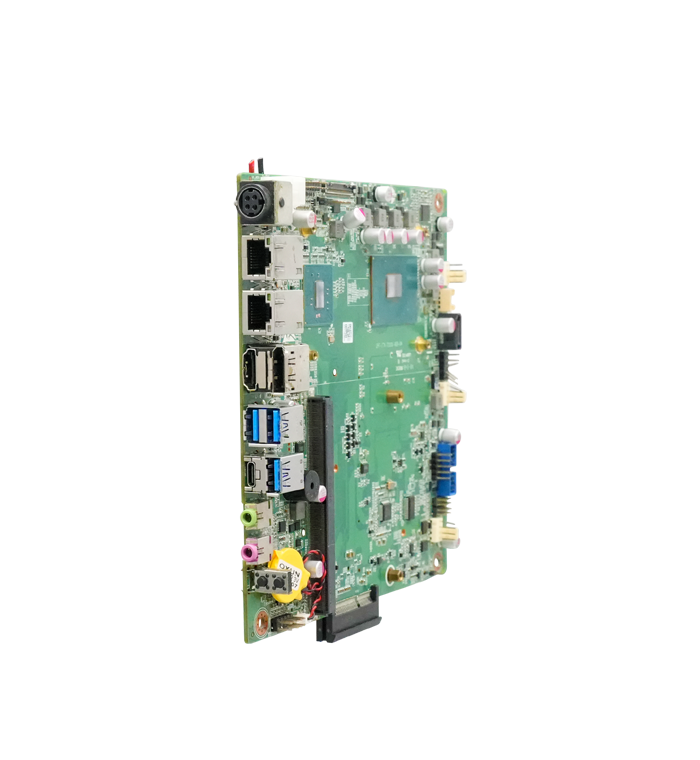

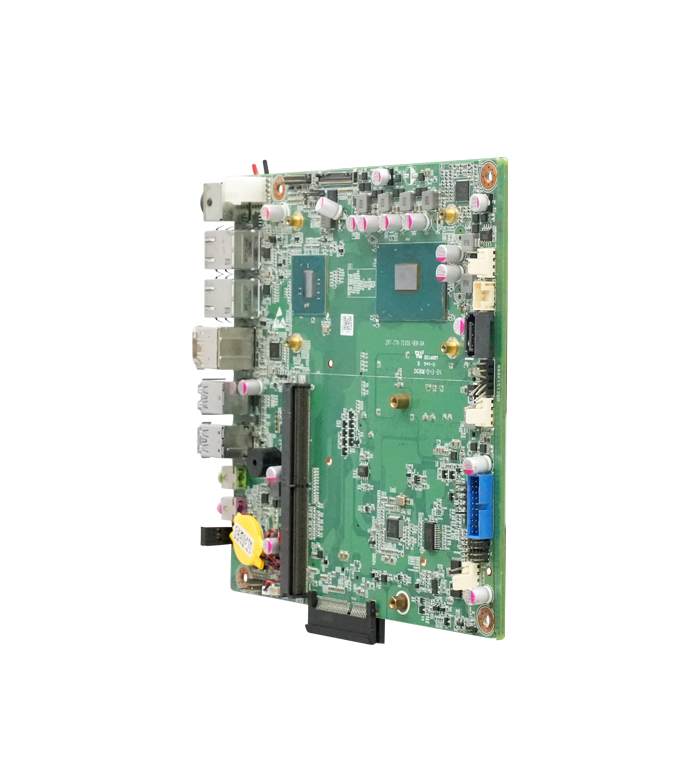

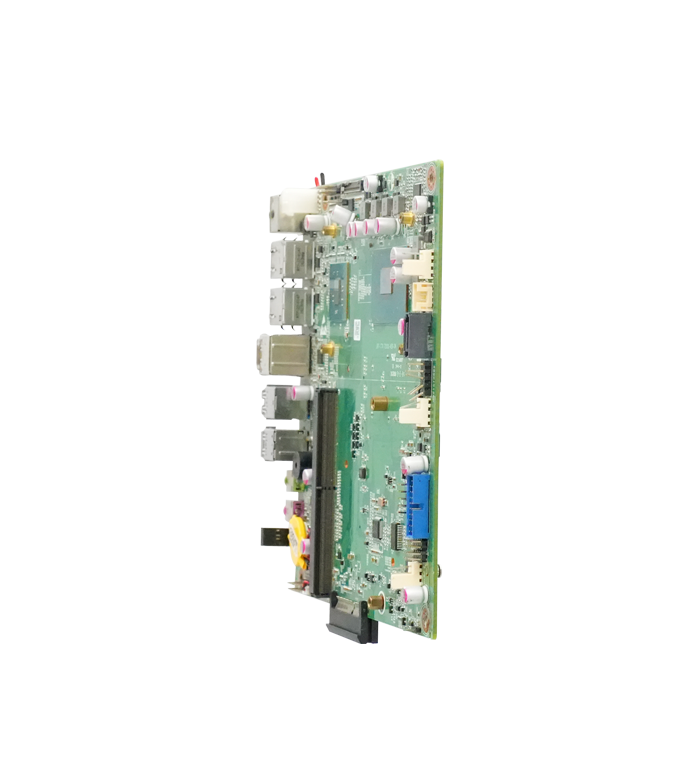

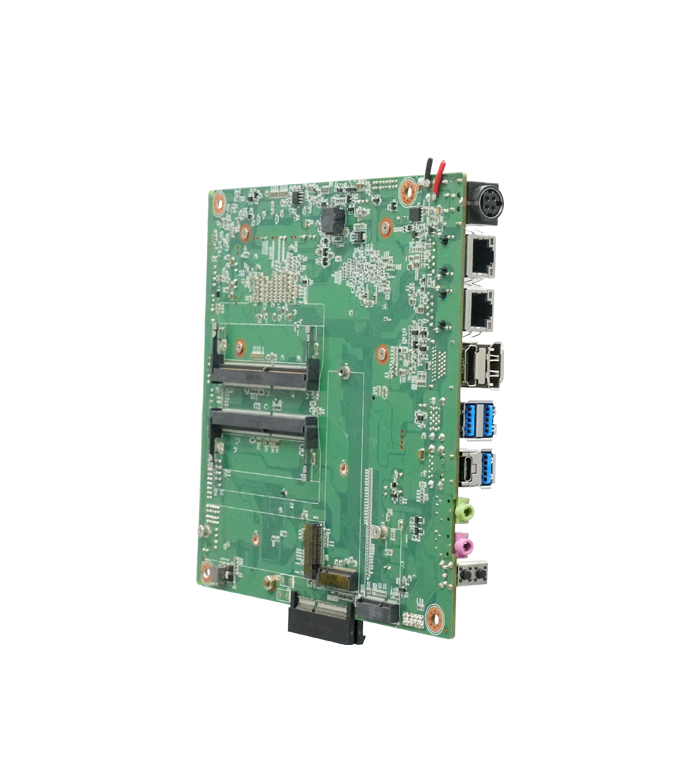

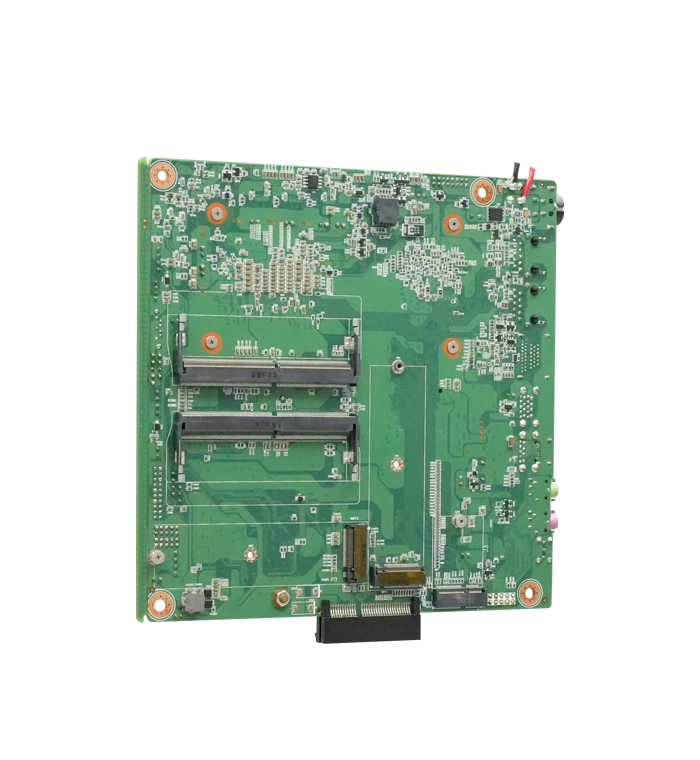

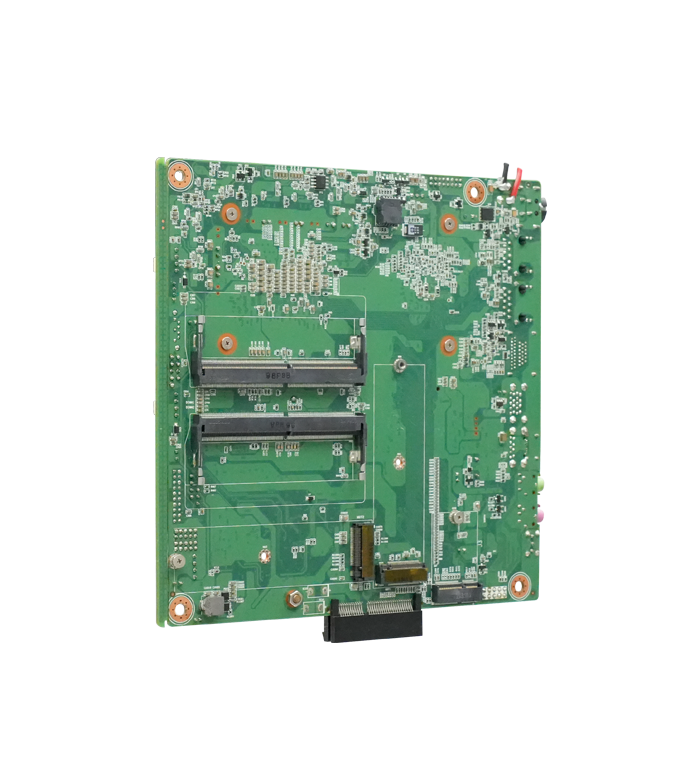

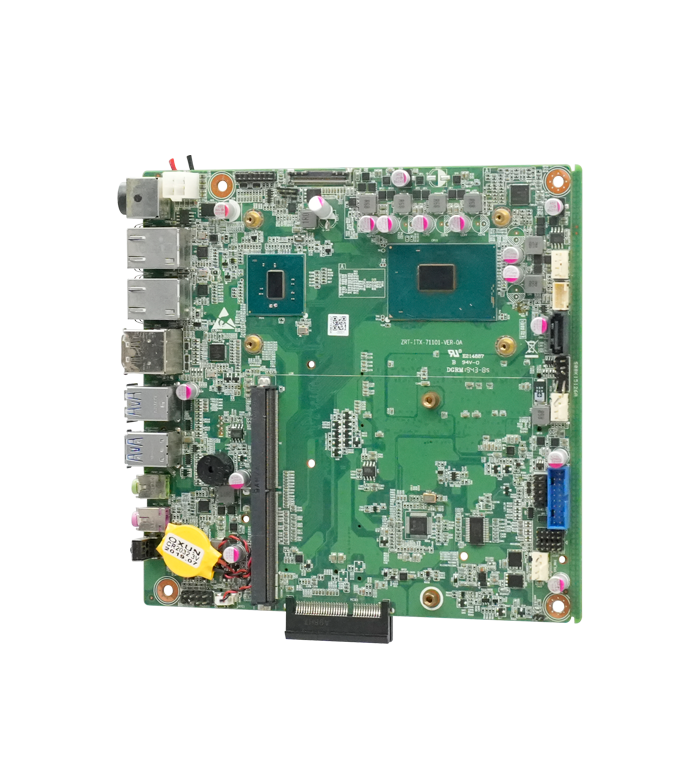

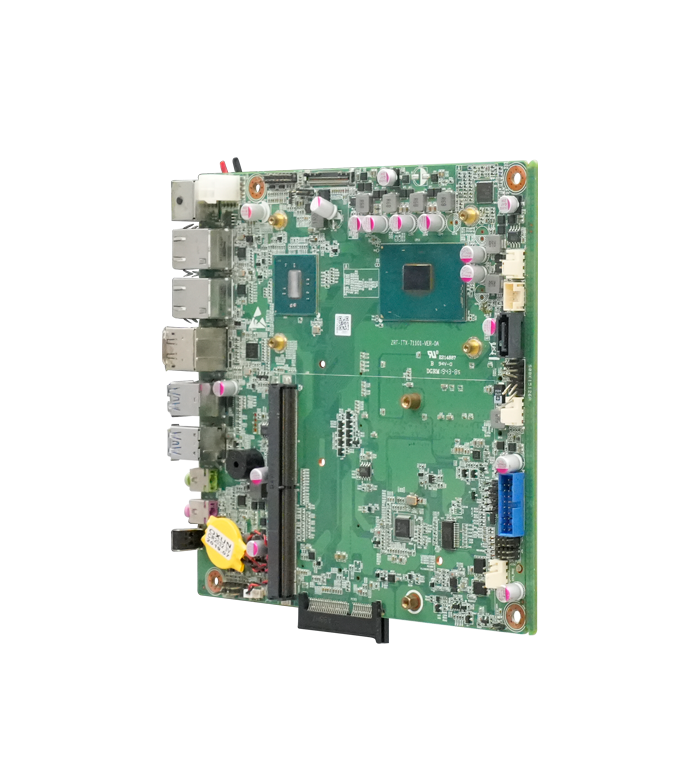

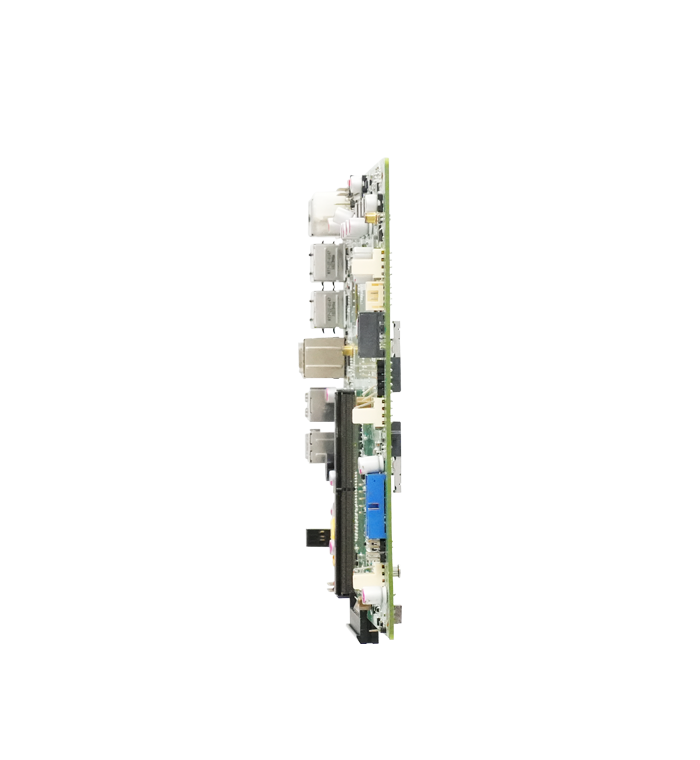

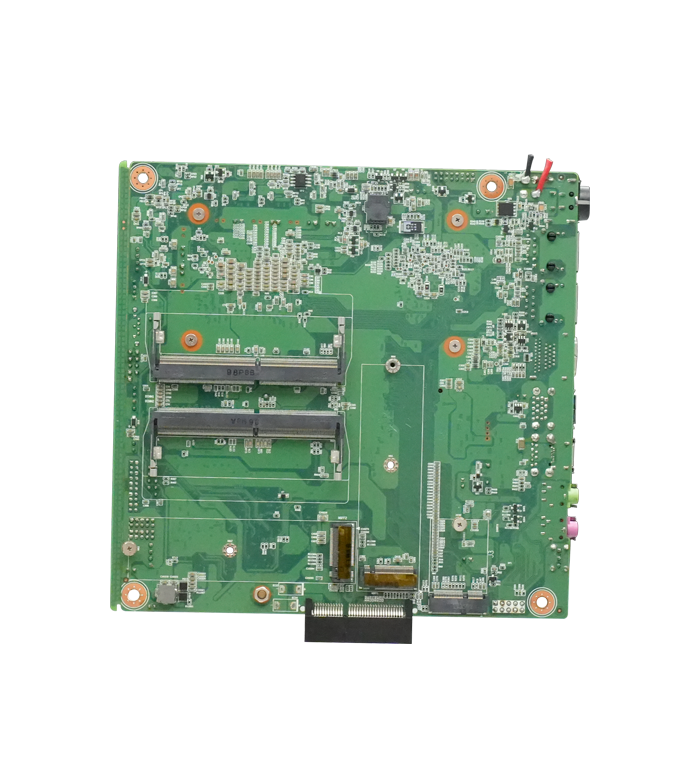

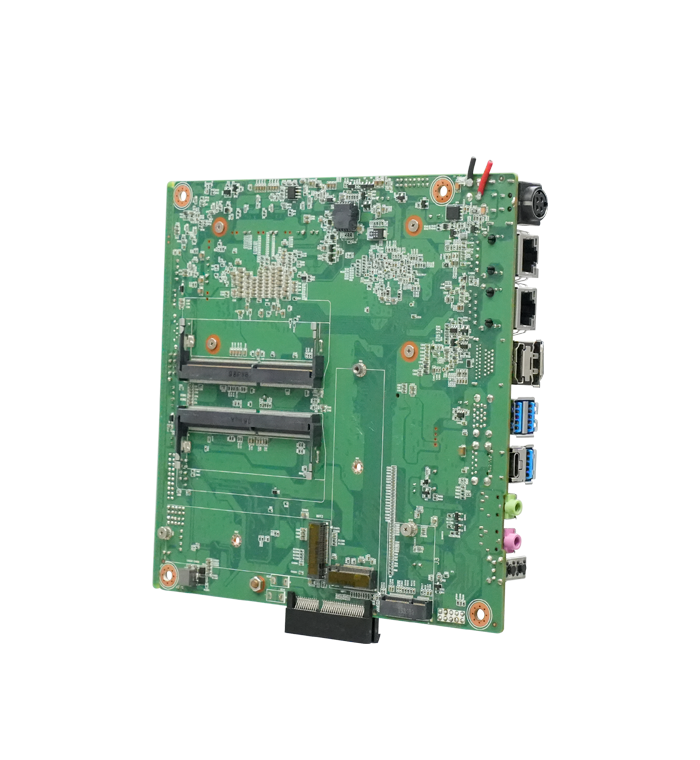

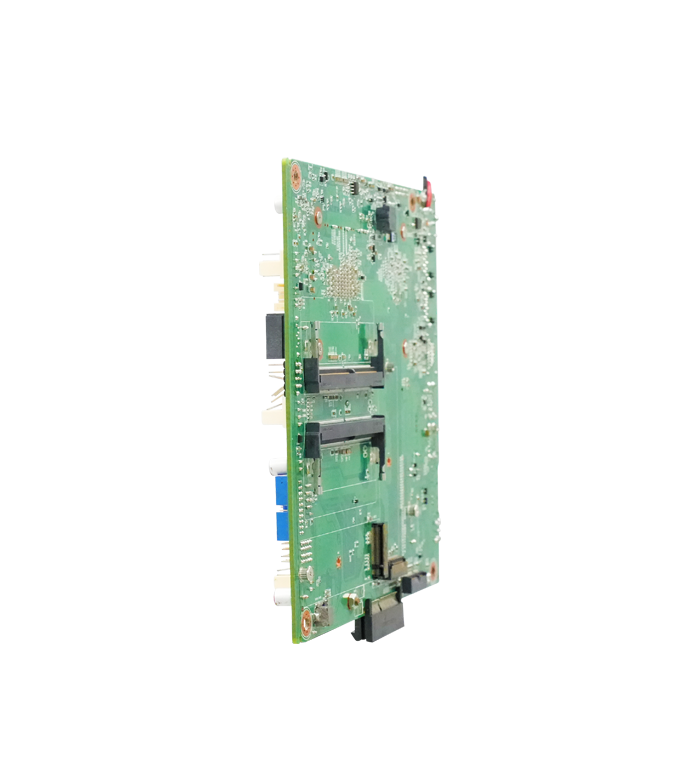

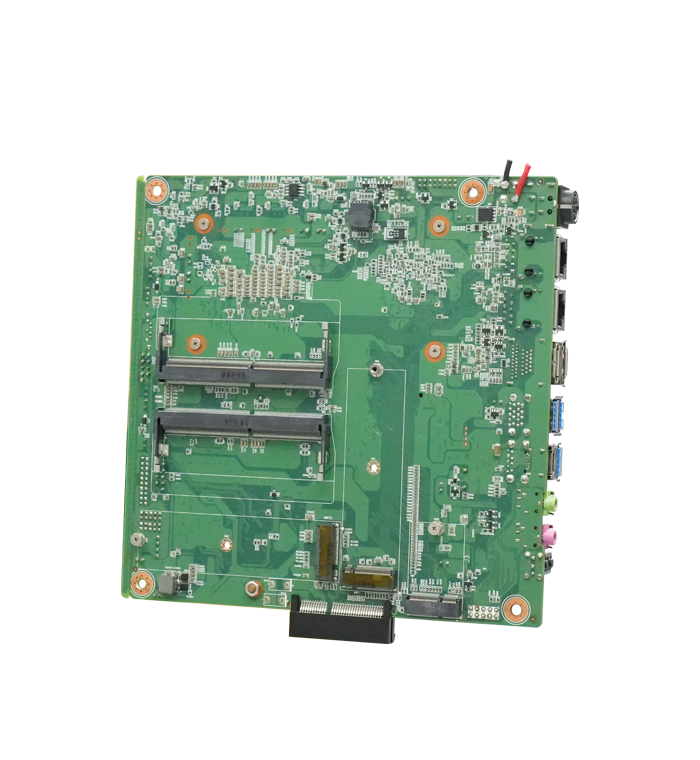

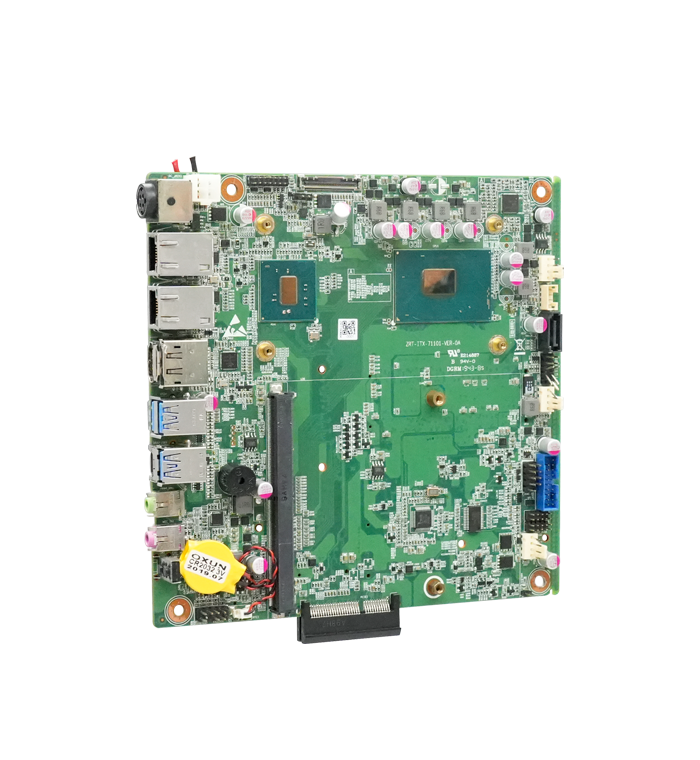

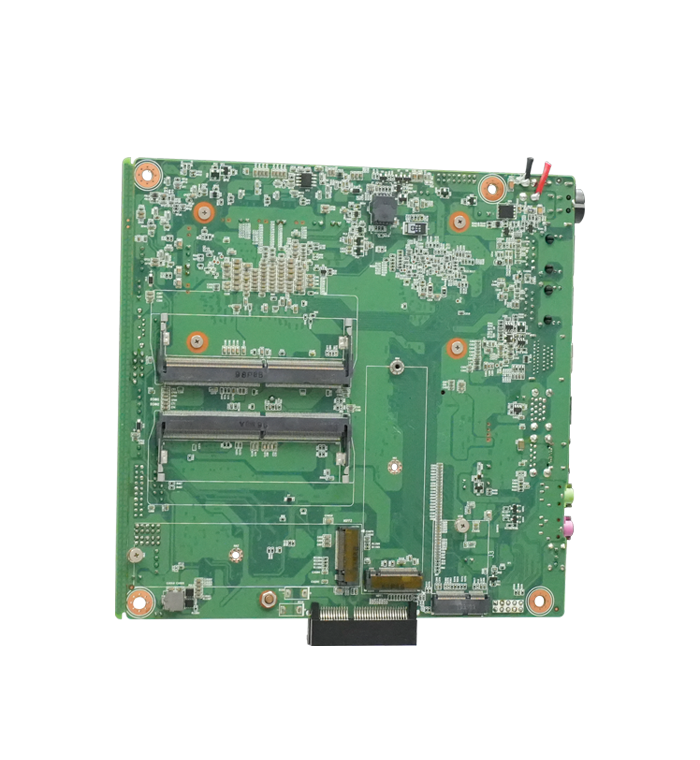

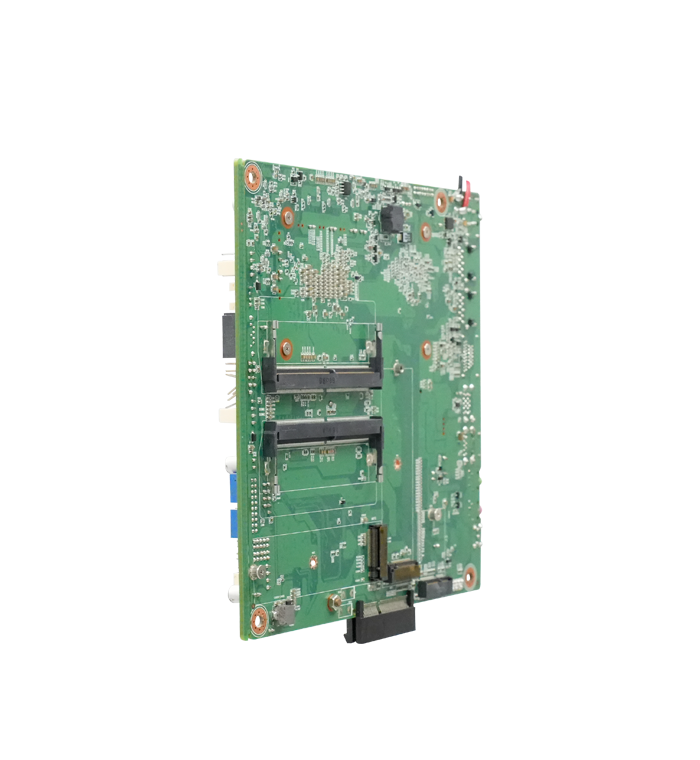

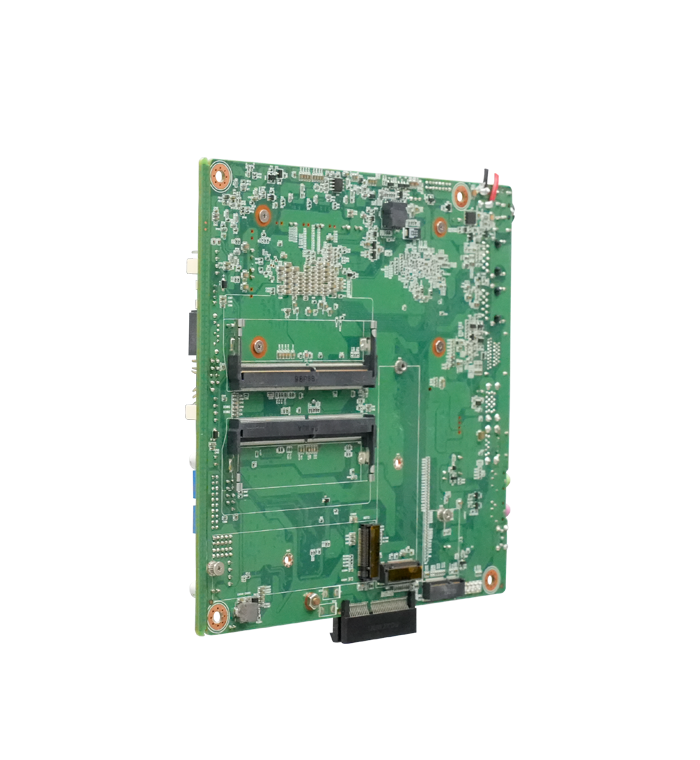

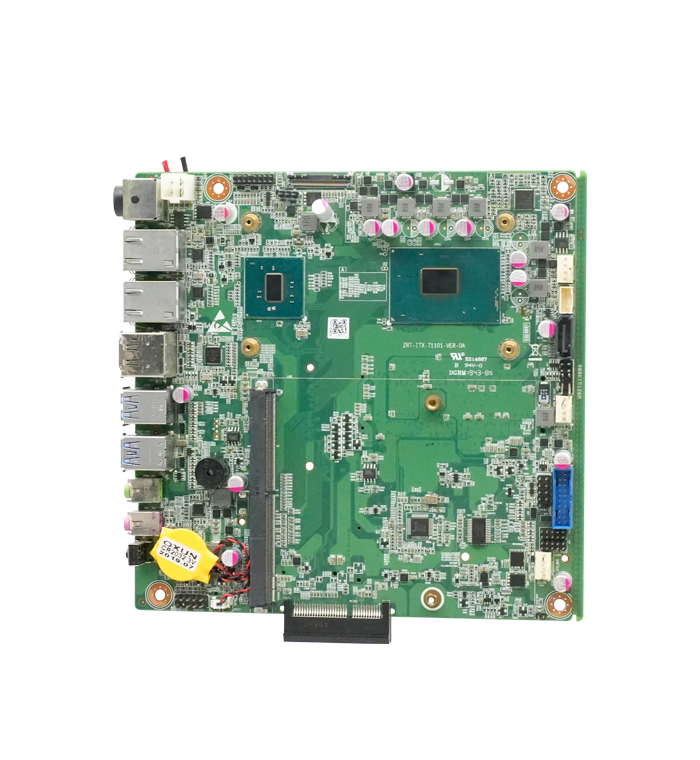

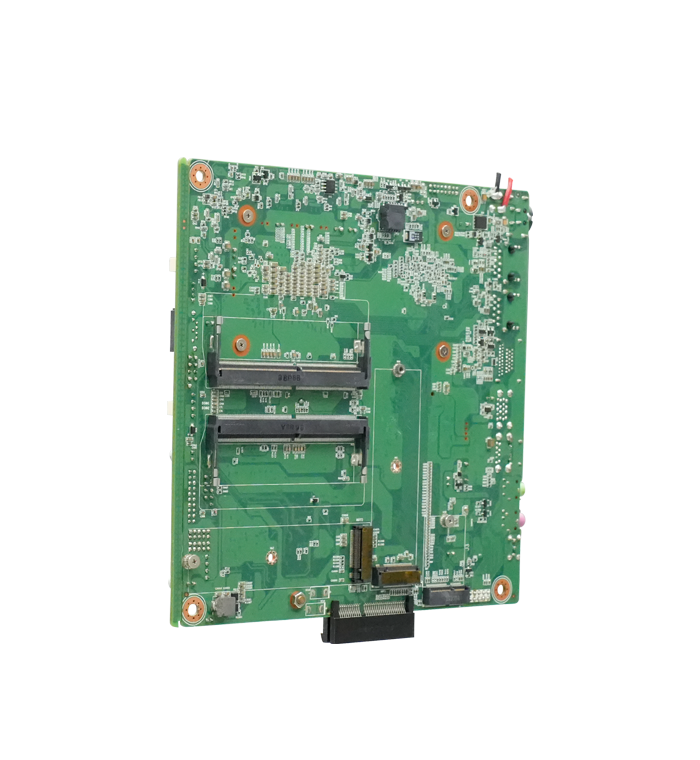

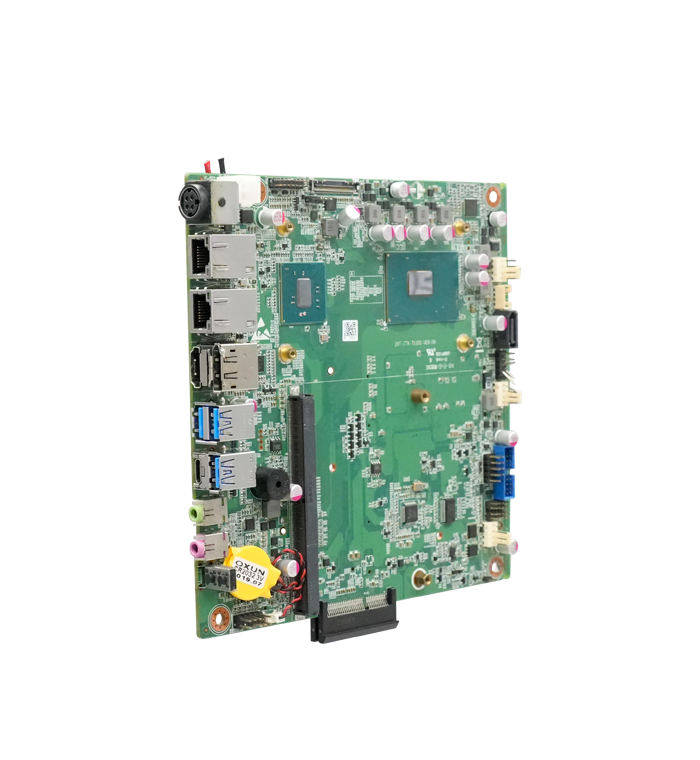

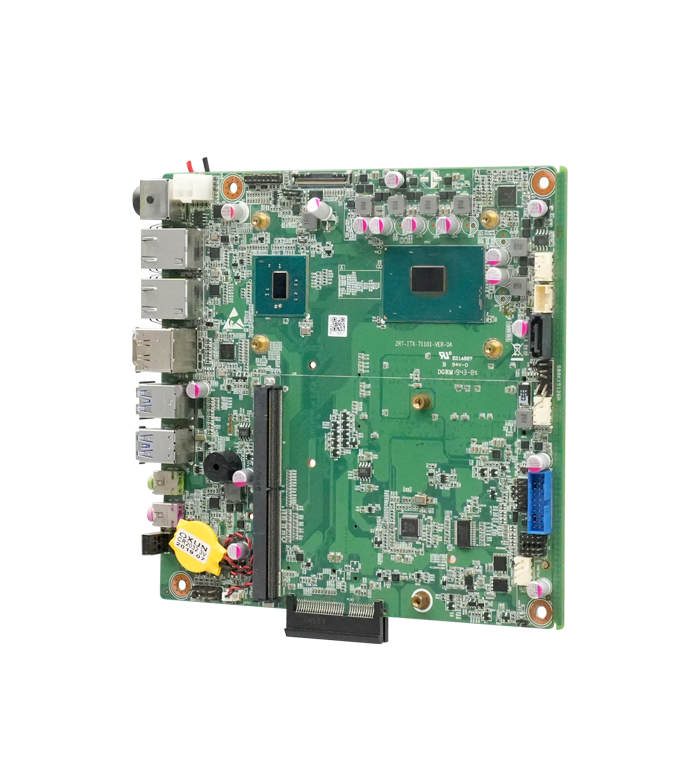

Drag and drop the mouse to view the image 360 °
Features
• Low-power Intel Skylake/Kaby Lake-HQ series processors
• Support DP+HDMI+HDMI (integrated display pin) triple display output
• Dual-channel DDR4 memory design, maximum support 32GB
• With EDP output port (integrated display)
• With one-key restore function
• With one-key off-screen
• PCIE*4 slot with side expansion
| Form Factor | Form Factor | 7" motherboard |
| Processor System | CPU | i5-6300HQ/i7-6700HQ/i5-7300HQ/i7-7700HQ |
| Core Number | 4 | |
| Max. Speed | 3.2GHz/3.5GHz/3.5GHz/3.8GHz | |
| L3 Cache | 6 MB | |
| TDP (W) | 45 W | |
| Chipset | QM170 | |
| BIOS | AMI EFI BIOS 64M | |
| Expansion Slot | PCIe x1 (Gen3) | / |
| PCIe x4 (Gen3) | 1 | |
| PCIe x16 (Gen3) | / | |
| Memory | Technology | DDR4 |
| Max. Capacity | 64G | |
| Socket | 2*SO-DIMM | |
| Graphics | Controller | Intel® HD Graphics 530 |
| HDMI | 1 pin, integrated display output | |
| eDP | 1, integrated display output | |
| LVDS | / | |
| Display Port | DP+HDMI | |
| Ethernet | Controller | Realtek RTL8111H |
| Connector | RJ45 | |
| SATA | Max Data Transfer Rate | SATA 6Gb/s |
| Q'ty | 1 | |
| Rear I/O | Display Port | 1XDP |
| HDMI | 1XHDMI | |
| Ethernet | 2XRJ45 | |
| USB | 3XUSB3.0 | |
| Audio | 1* Line OUT 1* Mic(using ALC662 chip) | |
| Seria | 1xTYP-C(USB function) | |
| Internal Connector | USB 3.0 | 2xUSB3.0 Pin |
| USB 2.0 | 2xUSB2.0 Pin | |
| SATA 3.0 | / | |
| Extended Display Port (eDP)/LVDS | 1xEDP interface | |
| M.2 (M key) | 1*M.2 supports 2280 SATA SSD 1*M.2 supports 2280 PCIe/SATA SSD | |
| M.2 (E key) | 1*M.2 supports 2280 PCIe/SATA SSD | |
| GPIO | MXM3.1 | |
| Power Requirements | Power Type | DC |
| Power input Voltage | 12V-19V DC, | |
| Power Consumption | / | |
| Environment | Operating Temperature | 0-50℃ |
| Storage Temperature | -40°C - 70°C | |
| Physica | Dimensions | 170mmX170mm |
| OS | Microsoft | Support Win7\Win10 |
| Linux | Linux |
