产品类型

Form Factor

产品类型

Form Factor

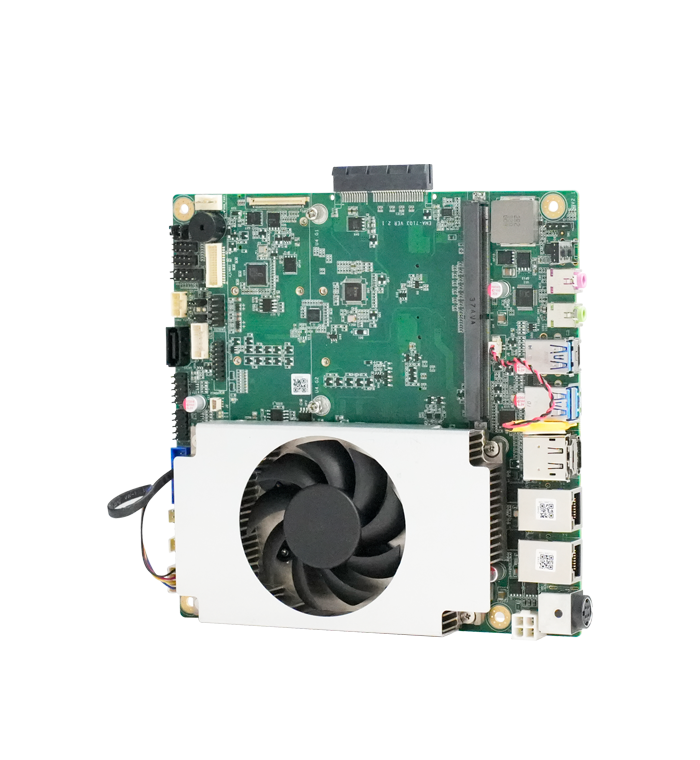

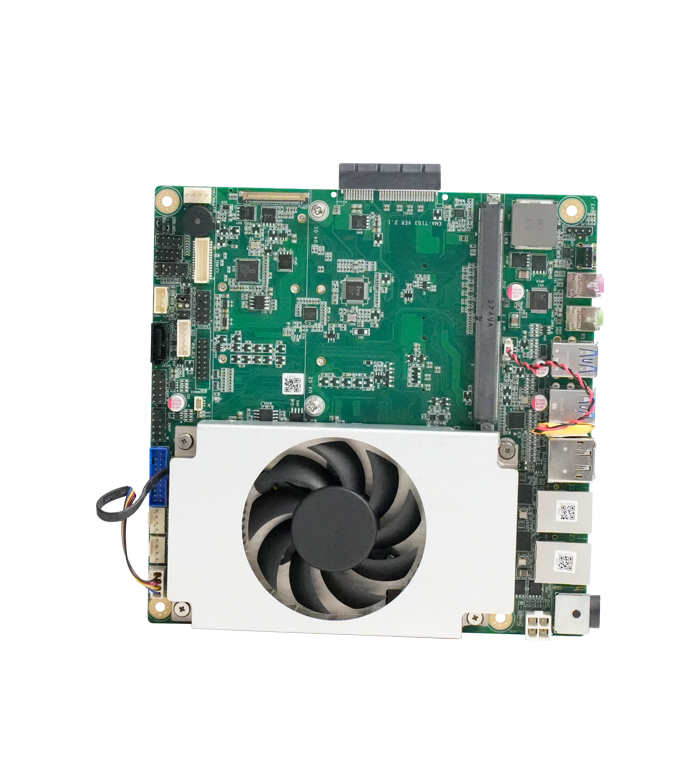

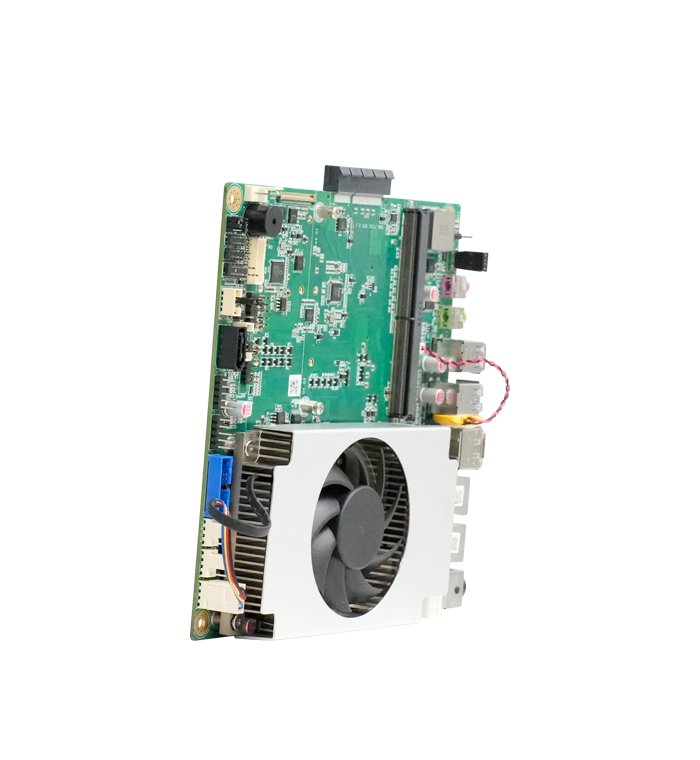

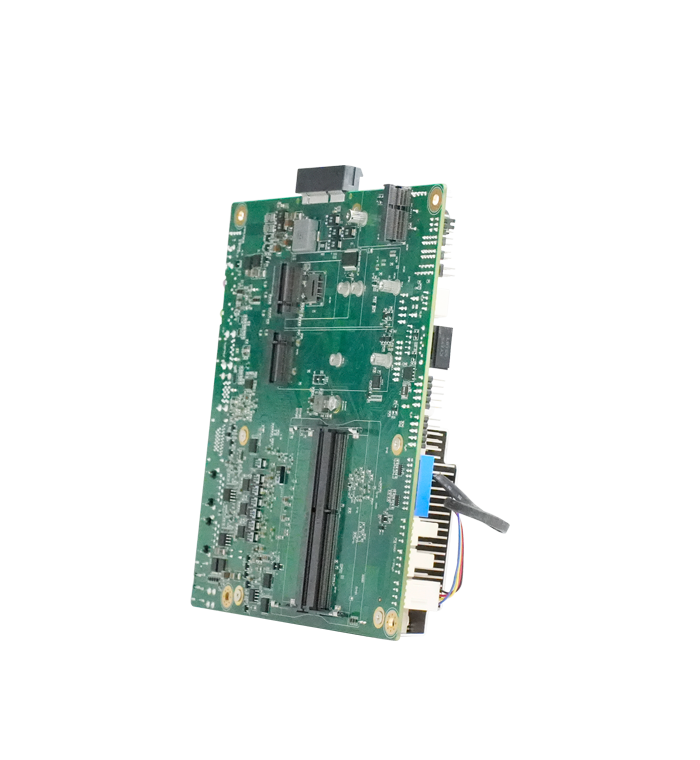

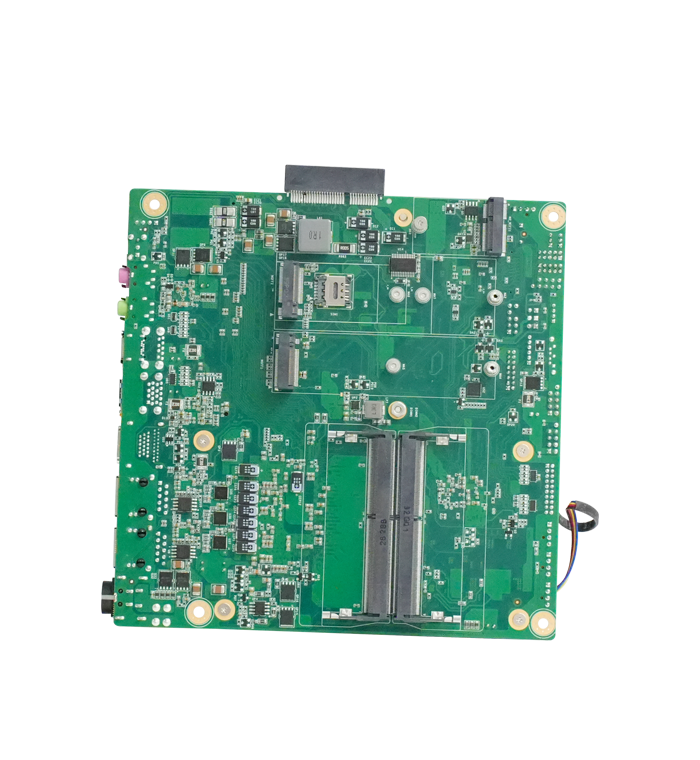

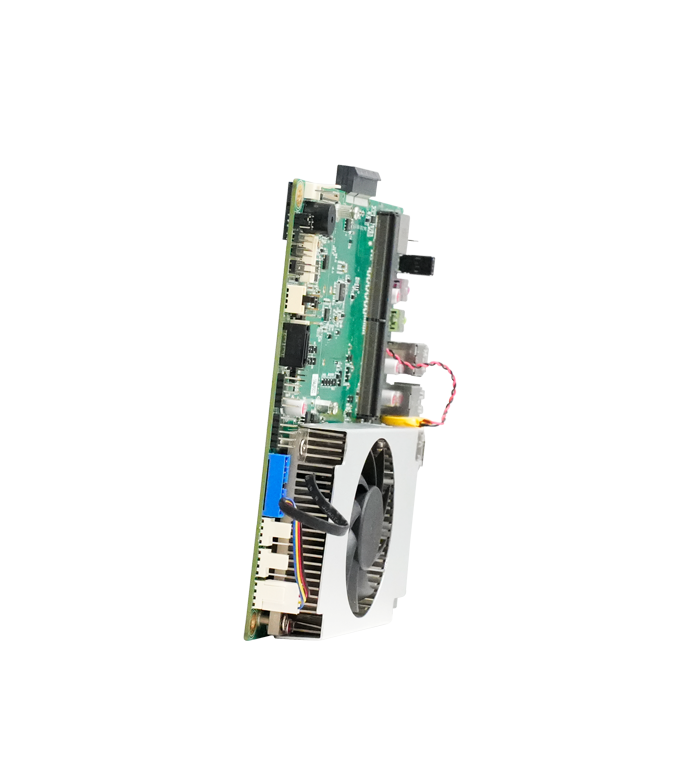

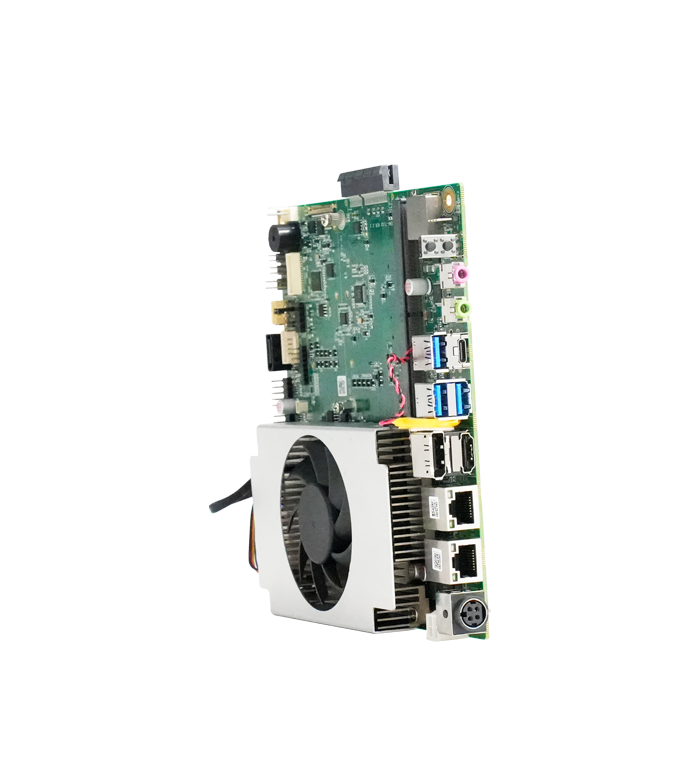

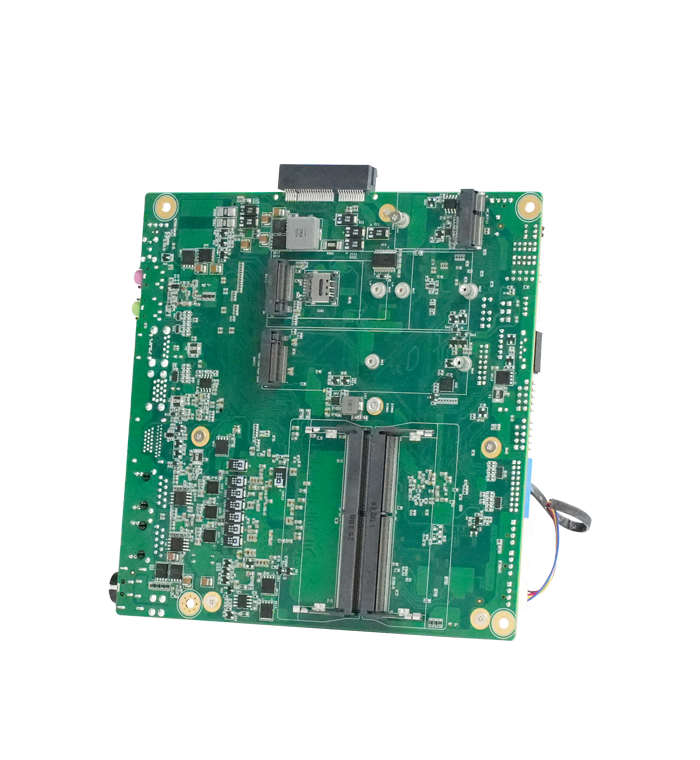

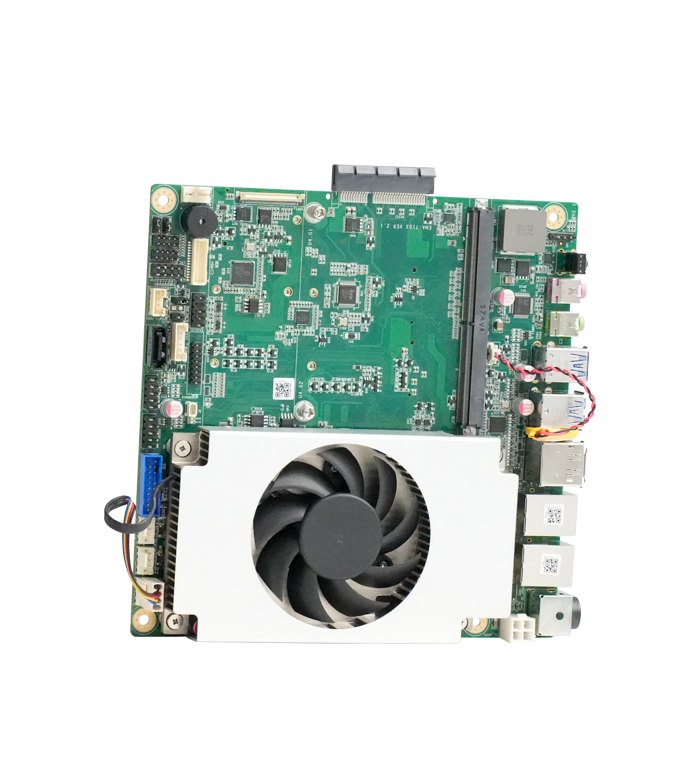

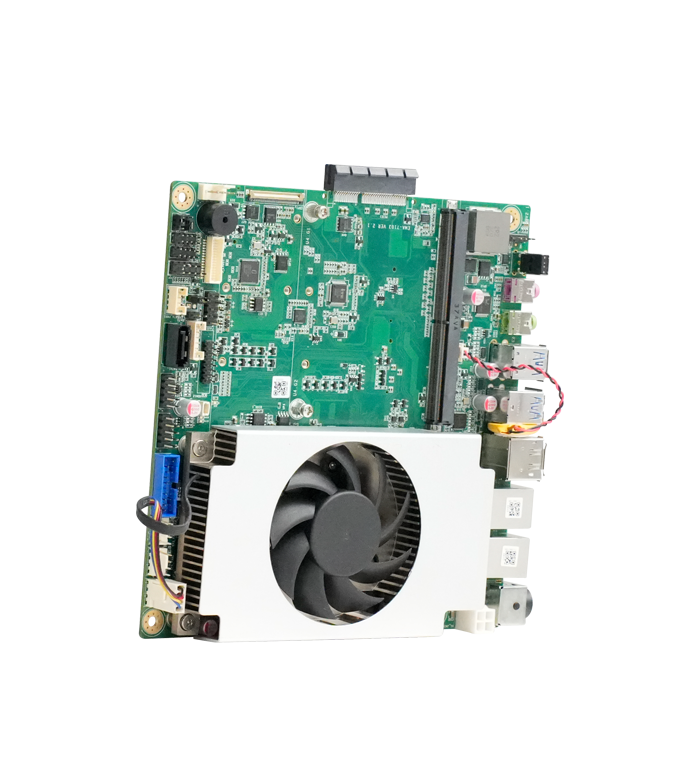

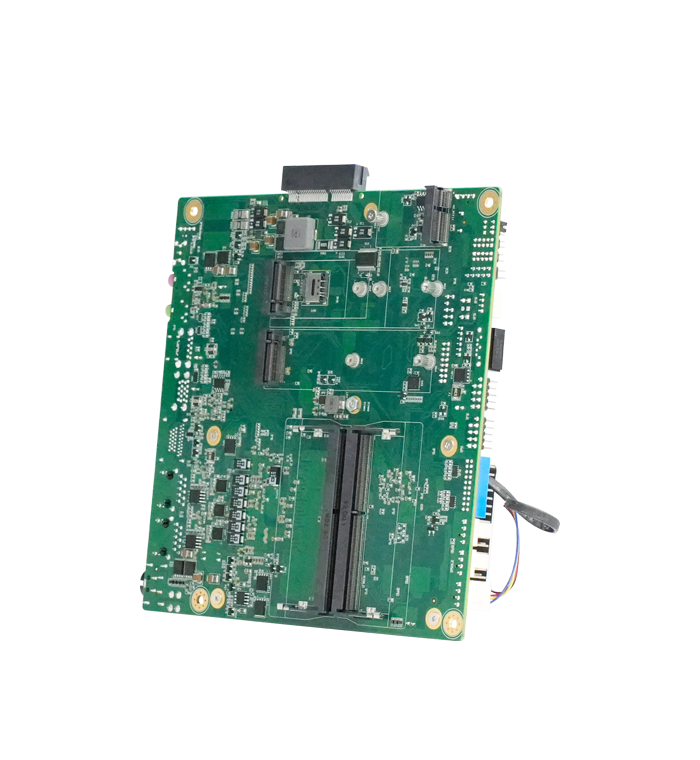

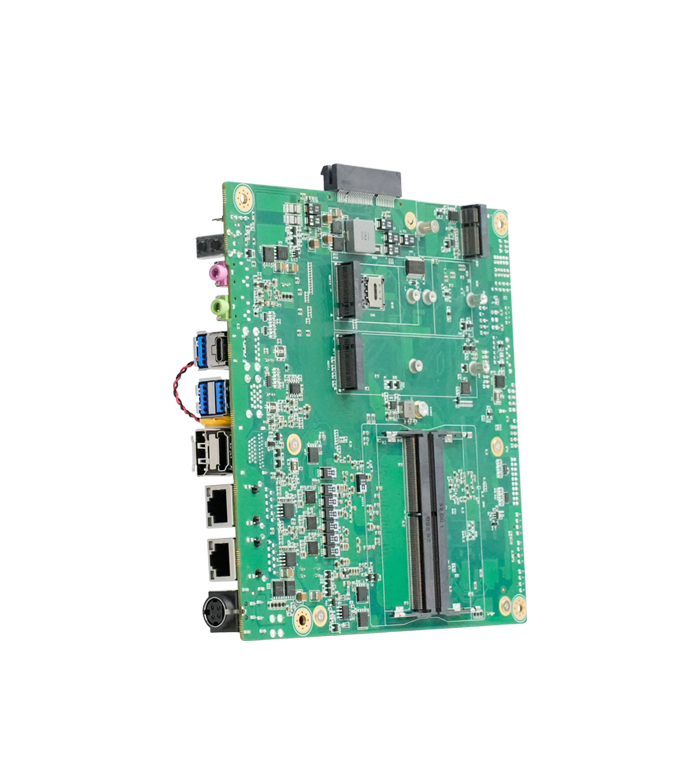

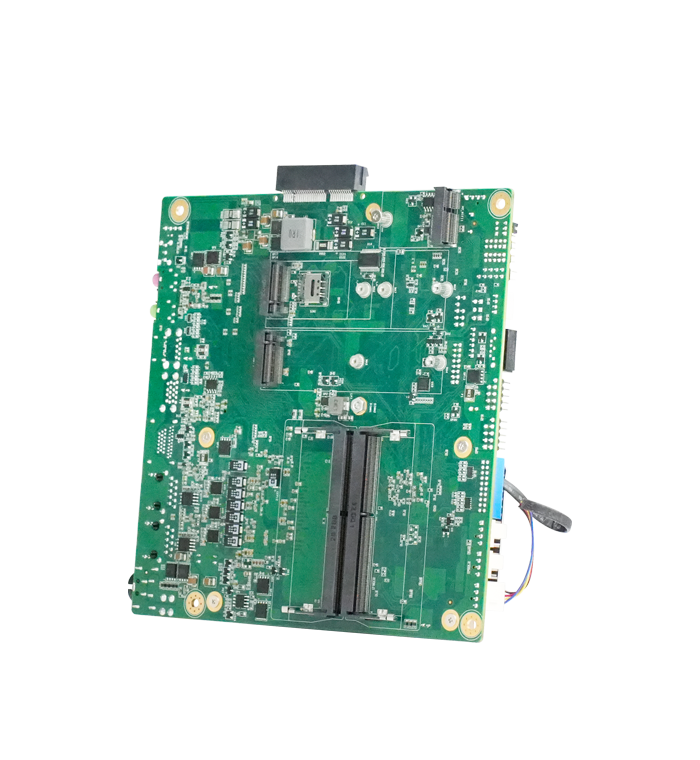

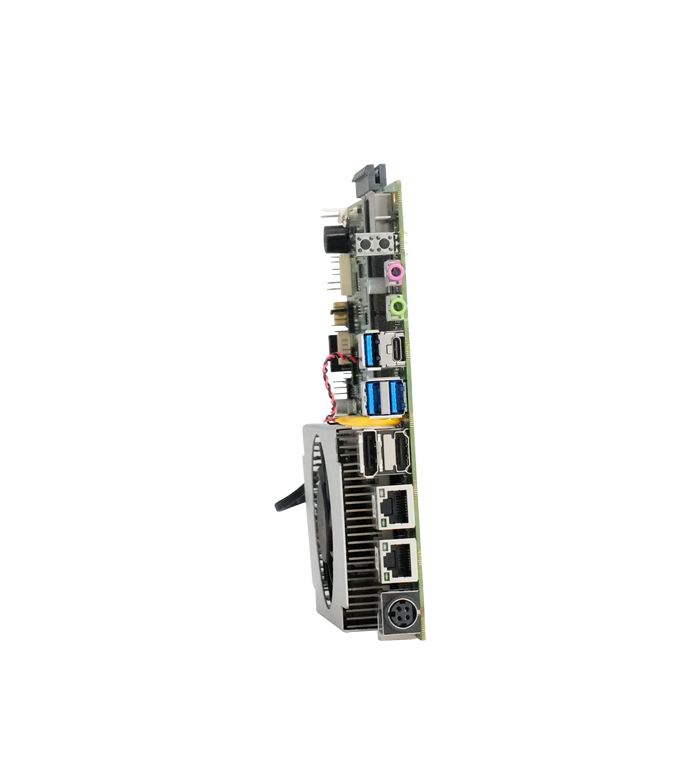

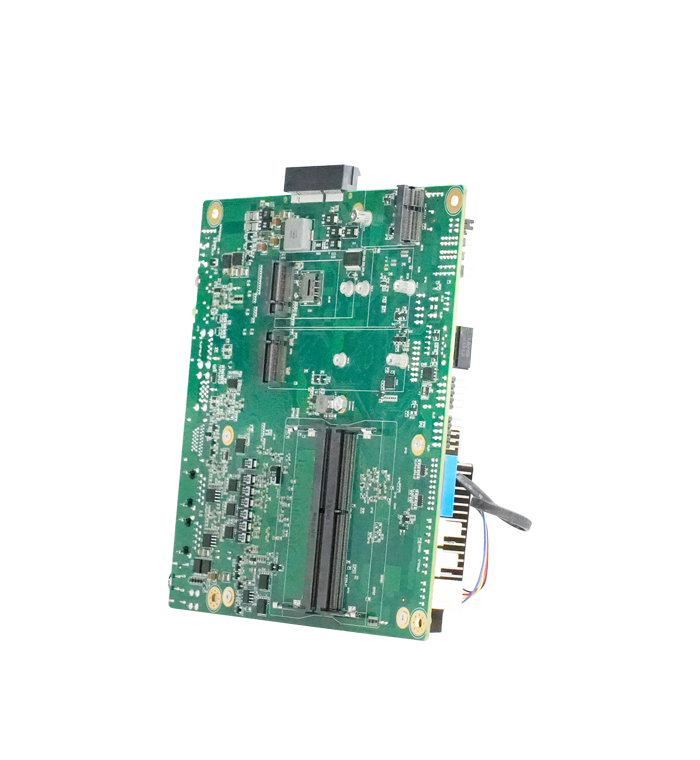

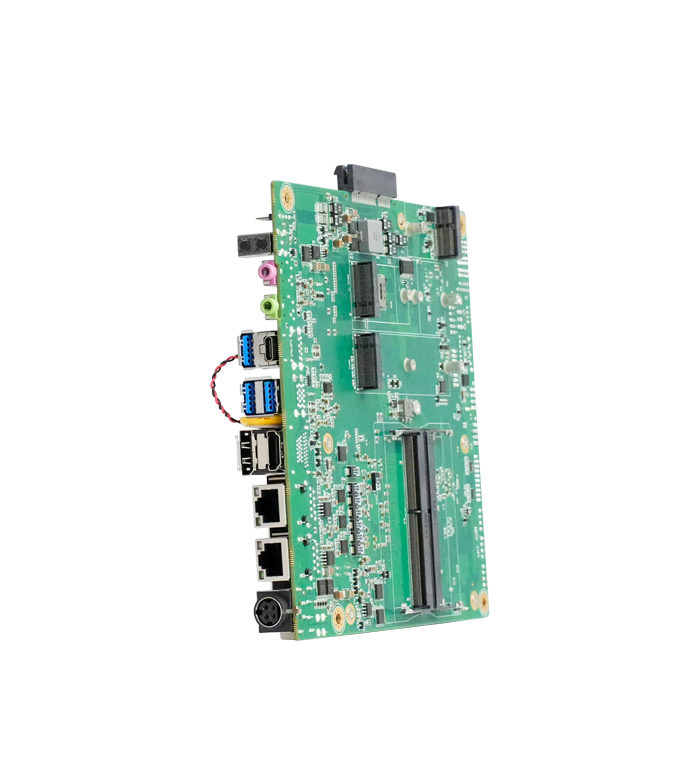

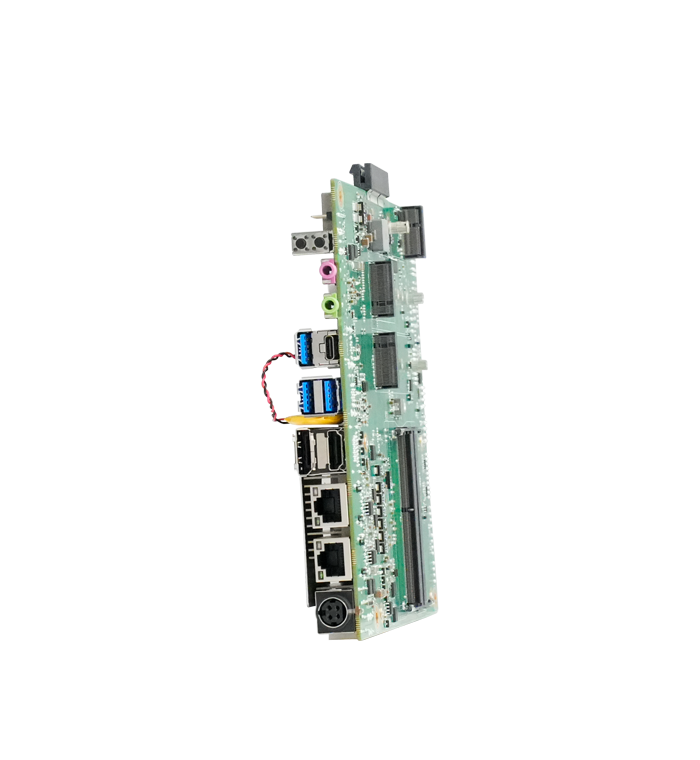

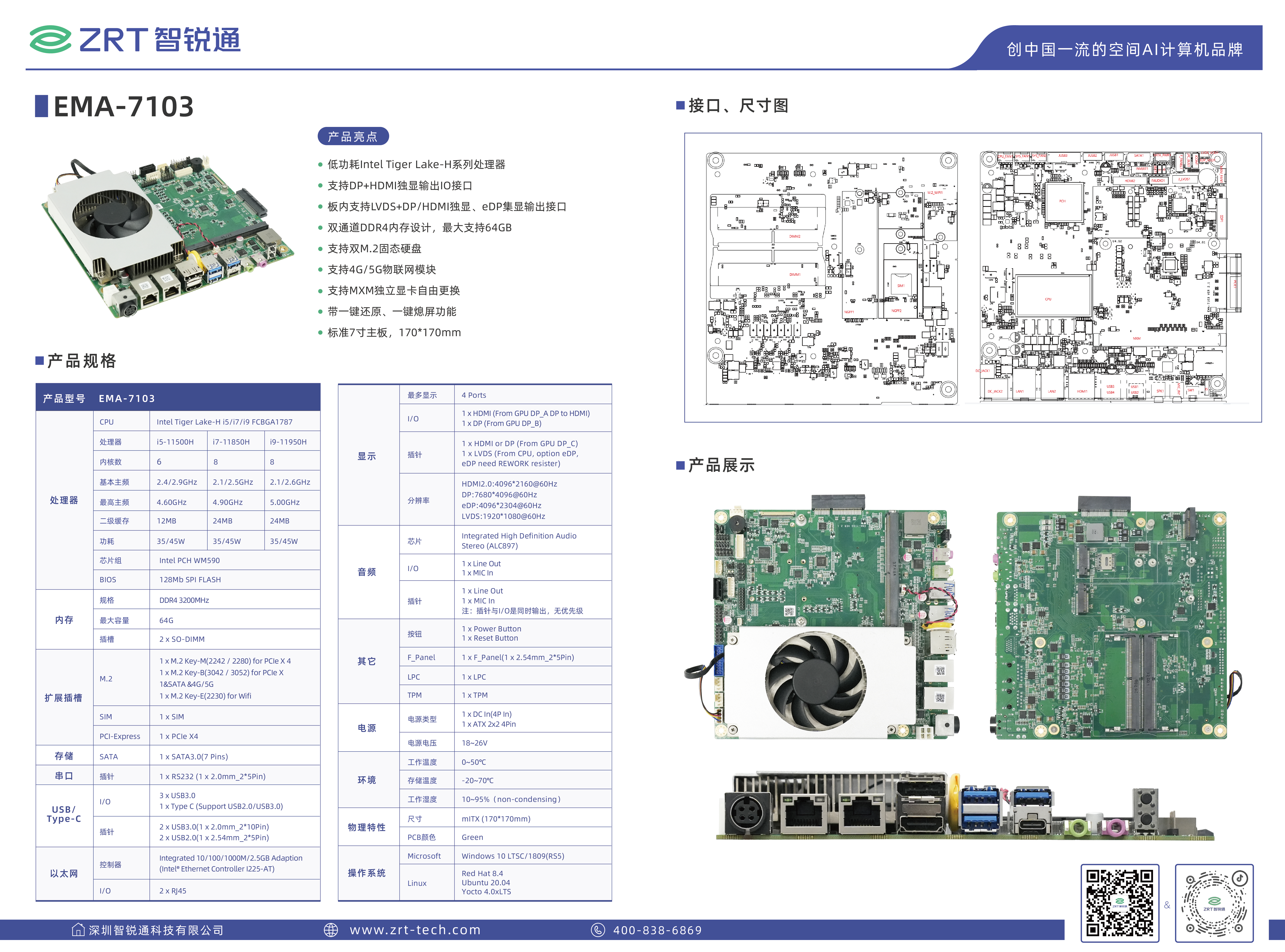

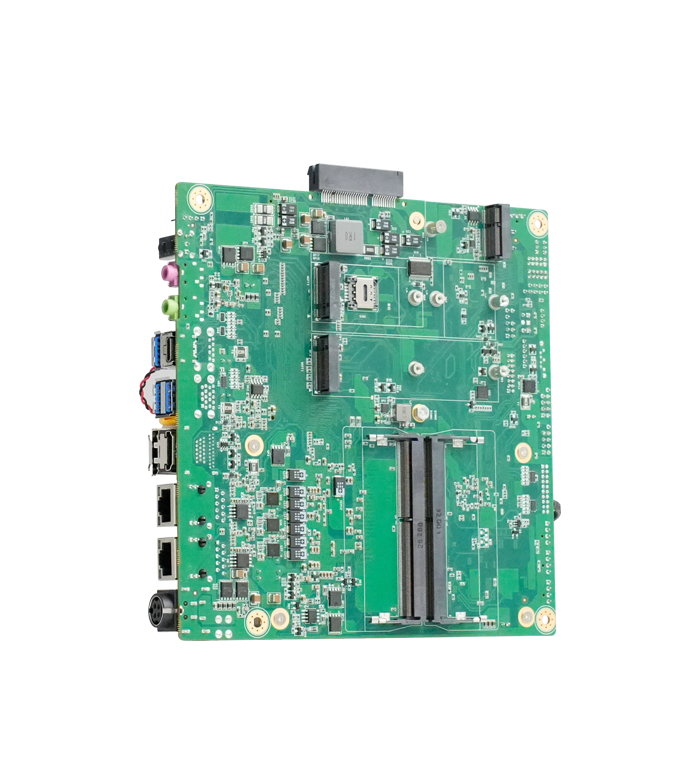

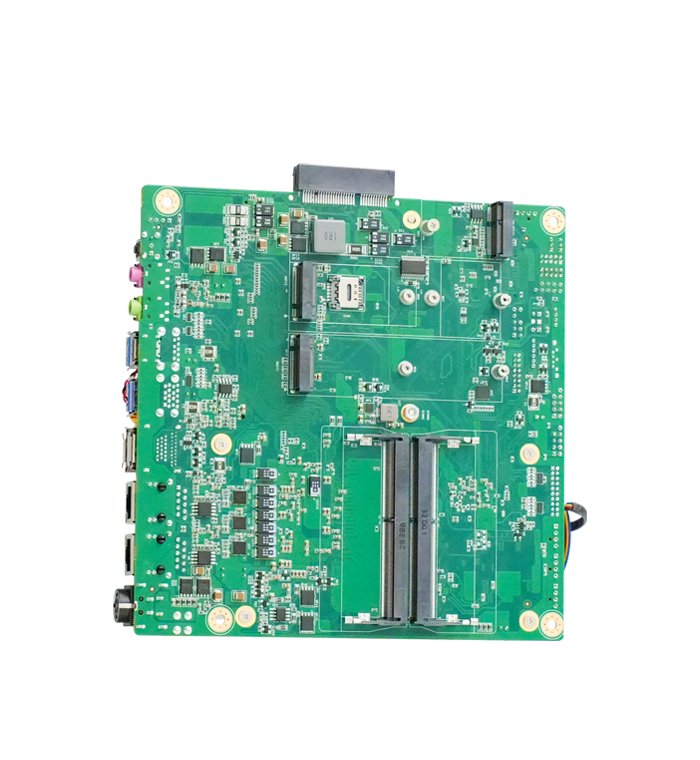

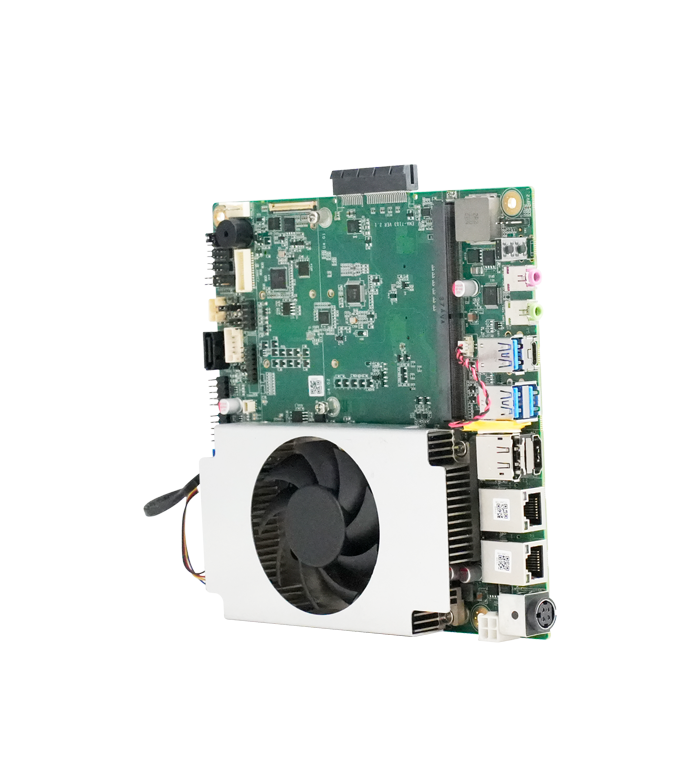

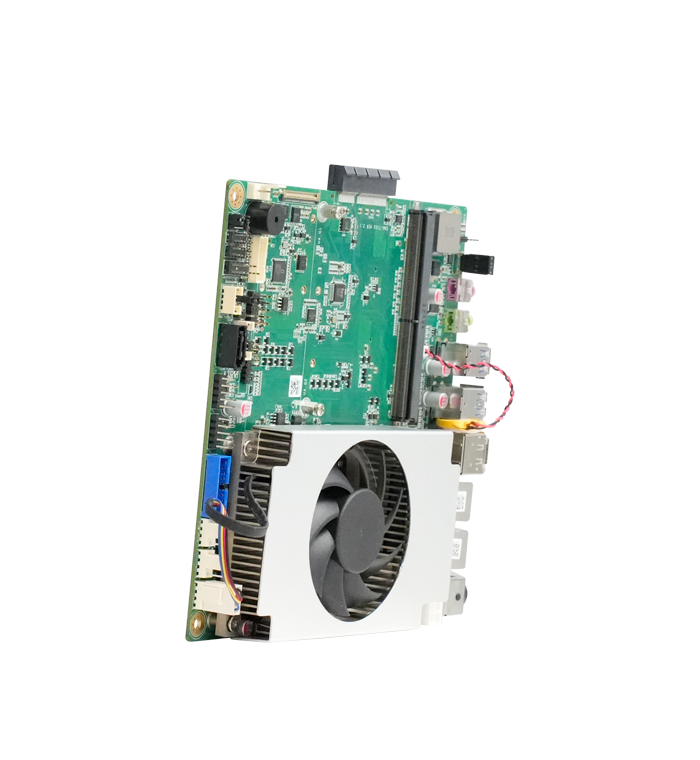

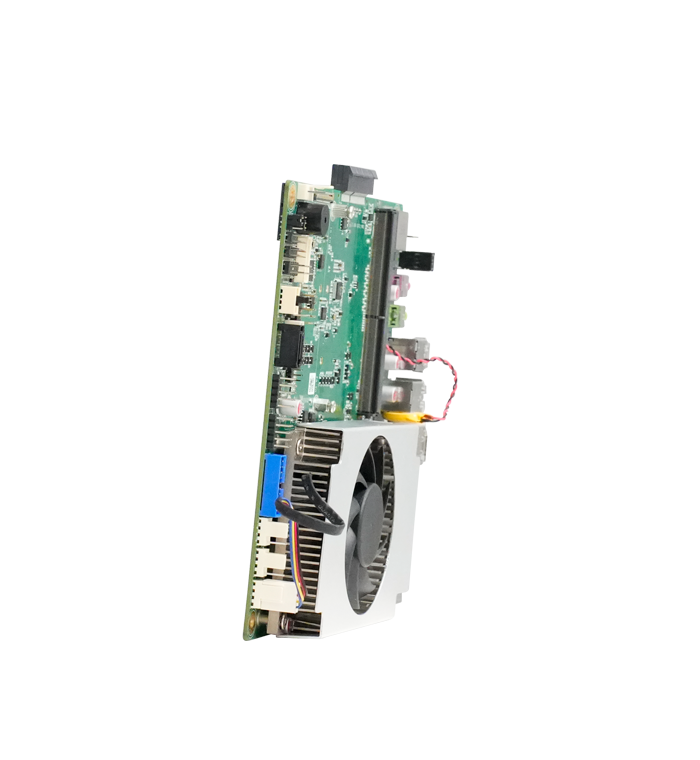

7“miniITX  motherboard

处理器

Processor System

CPU

Intel Tiger Lake-H i5/i7/i9   FCBGA1787

处理器

CPU

I5-11500H

I7-11850H

I9-11950H

内核数

Core Number

6

8

8

基本主频

Base   Frequency

2.4/2.9GHz

2.1/2.5GHz

2.1/2.6GHz

最高主频

Max. Speed

4.60GHz

4.90GHz

5.00GHz

二级缓存

L2 Cache

12MB

24MB

24MB

功耗

TDP (W)

35/45W

35/45W

35/45W

芯片组

Chipset

Intel PCH QM580

BIOS

128Mb SPI FLASH

内存

Memory

规格

Technology

DDR4 3200MHz

最大容量

Max.   Capacity

64G

插槽

Socket

2 x SO-DIMM

扩展插槽

Expansion   Slot

M.2

1 x M.2 Key-M(2242 / 2280) for PCIe/SATA

1 x M.2 Key-B(3042 / 3052) for SATA &4G/5G

1 x M.2 Key-E(2230) for Wifi

SIM

1 x SIM

PCI-Express

1 x PCIe 4x

存储

Storage

SATA

1 x SATA3.0(7 Pins)

串口

COM

插针

Header Pin

1 x RS232 (1 x 2.0mm_2*5Pin)

I/O

1 x HDMI (From GPU DP_A DP to HDMI)

1 x DP (From GPU DP_B)

插针

Header Pin

1 x eDP (From CPU)

1 x HDMI or DP (From GPU DP_C)

1 x LVDS (From GPU DP_D DP to LVDS)

分辨率

Resolution

HDMI2.0:4096*2160@60Hz

DP:7680*4096@60Hz

eDP:4096*2304@60Hz

LVDS: 1920*1080@60Hz

USB / Type-C

I/O

3 x USB3.0

1 x Type C (Support USB2.0/USB3.0)

插针

Header Pin

2 x USB3.0(1 x 2.0mm_2*10Pin)

2 x USB2.0(1 x 2.54mm_2*5Pin)

以太网

Ethernet

控制器 Controller

Integrated 10/100/1000M/2.5GB Adaption

(Intel® Ethernet Controller I225-AT)

I/O

2 x RJ45

音频

Audio

芯片

Chipset

Integrated High Definition   Audio Stereo (ALC897)

I/O

1 x Line Out

1 x MIC In

插针

Header Pin

1 x Line Out 1 x MIC In

其它

Others

按钮

Button

1 x RV Button

1 x Reset Button

F_Panel

1 x F_Panel(1 x   2.54mm_2*5Pin)

LPC

1 x LPC

电源

Power Requirements

电源类型

Power Type

1 x DC In(4P In)

1 x ATX 2x2 4Pin

电源电压Input   Voltage

18~26V

环境

Environment

工作温度

Operating   Temperature

0~50℃

存储温度

Storage   Temperature

-20~70℃

工作湿度

Operating   Humidity

10~95%（non-condensing）

物理特性

Physical

尺寸

Dimensions

mITX (170*170mm)

PCB 颜色

Color

Green

Linux

Red Hat 8.4

Ubuntu 20.04

Yocto 4.0xLTS
