支持RK3588处理器
8GB LPDDR4X 内存，支持两个SATA，1个EMMC 64GB存储
支持 1个HDMI 2.0，一个HDMI2.1,一个DP1.4接口；一个HMDI2.0输入口
支持 2 个 GMAC（1 个与 LAN 插针选用）网口
支持 1 个 MXM 插槽，支持 AI 加速卡扩展
工作温度： -20℃~55℃，82*105mm尺寸

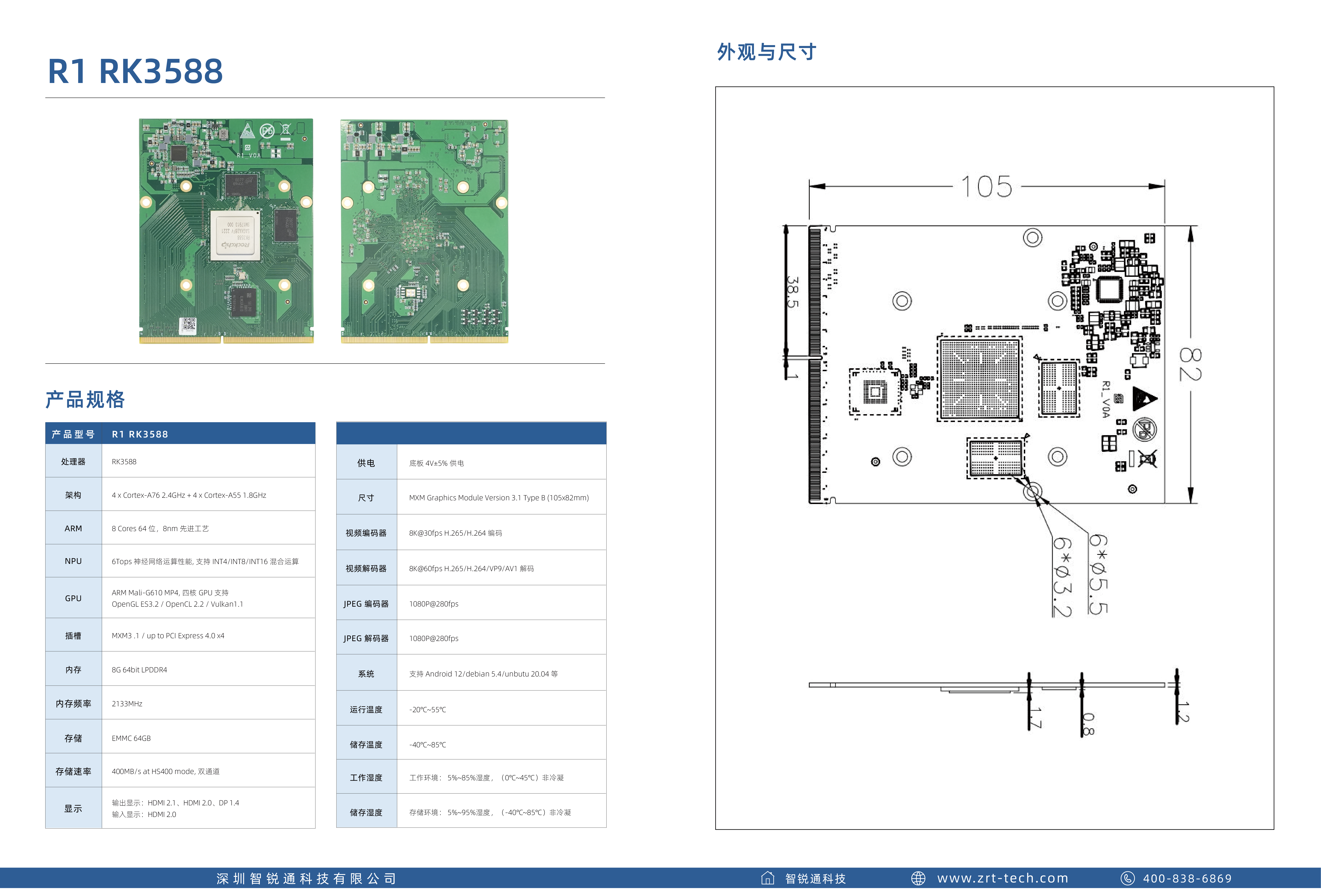

Model | MXM-R1 |
Processing Unit | RK3588 |
ARM Architecture | 4 x Cortex-A76 2.4GHz + 4 x Cortex-A55 1.8GHz |
ARM Core | 8 Cores 64 bit, 8nm technology |
NPU Core | 6Tops neural network processing performance, support INT4/INT8/INT16 hybrid operation |
GPU Core | ARM Mali-G610 MP4, Quad Core GPU, support OpenGL ES3.2 / OpenCL 2.2 / Vulkan1.1 |
Bus Type | MXM3 .1 / up to PCI Express 4.0 x4 |
RAM | 8G 64bit LPDDR4 |
Memory Clock | 2133MHz |
Storage Size | EMMC 64GB |
Speed Model | 400MB/s at HS400 mode, dual channel |
Display | Display output：HDMI 2.1、HDMI 2.0、DP 1.4 Display input：HDMI 2.0 |
Board Power | Board 4V±5% input |
Board Dimensions | MXM Graphics Module Version 3.1 Type B (105x82mm) |
Video Encoder | 8K@30fps H.265/H.264 encoding |
Video Decoder | 8K@60fps H.265/H.264/VP9/AV1 decoding |
JPEG Encoder | 1080P@280fps |
JPEG Decoder | 1080P@280fps |
Operation System | Support Android 12/debian 5.4/unbutu 20.04, etc |
Operating Temperature | -20℃~55℃ |
Storage Temperature | -40℃~85℃ |
Operating Humidity | Operation environment: 5%~85% humidity, (0℃~45℃) non condensing |
Storage Humidity | Storage environment: 5%~95% humidity, (-40℃~85℃) non condensing |
